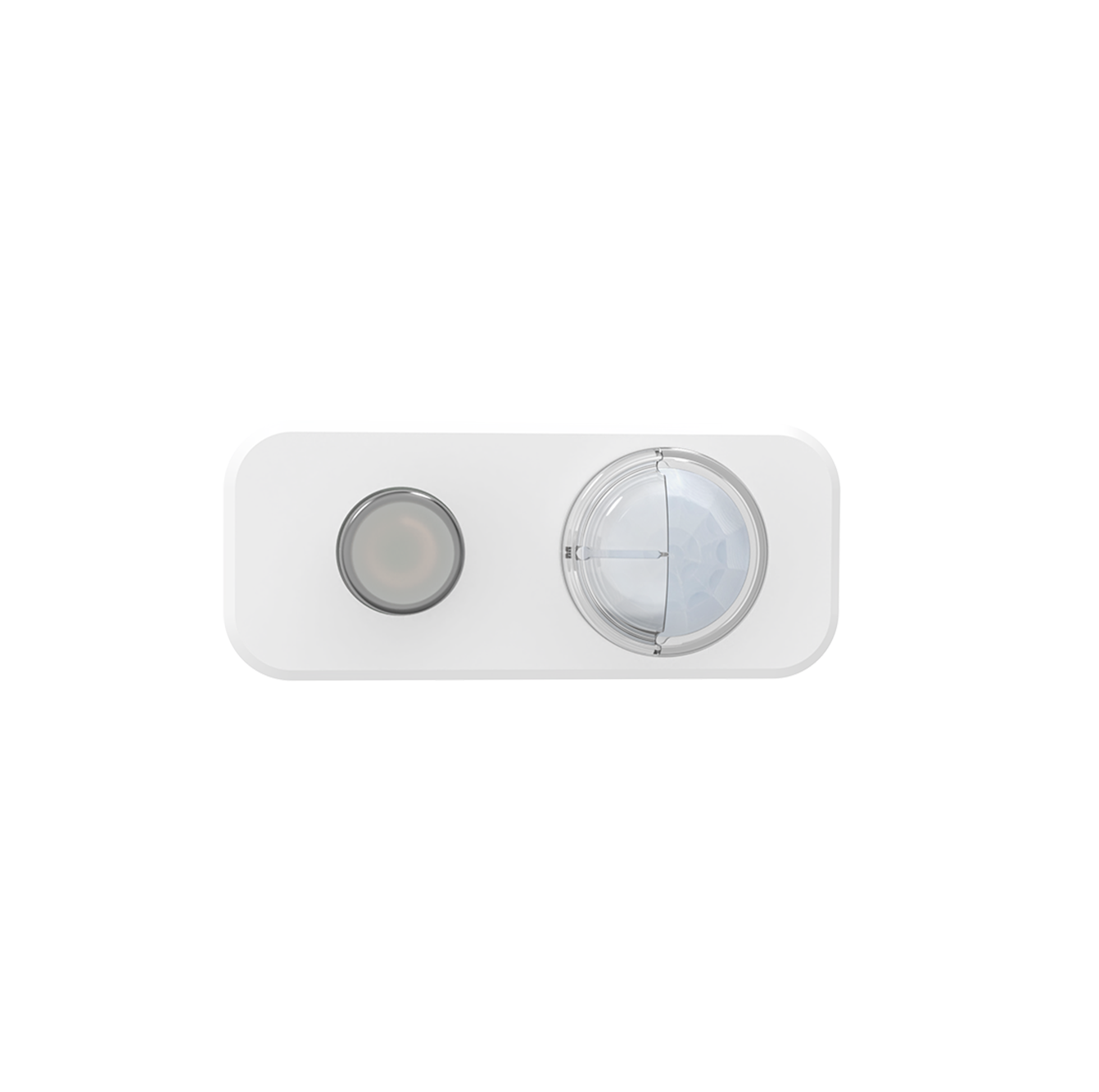

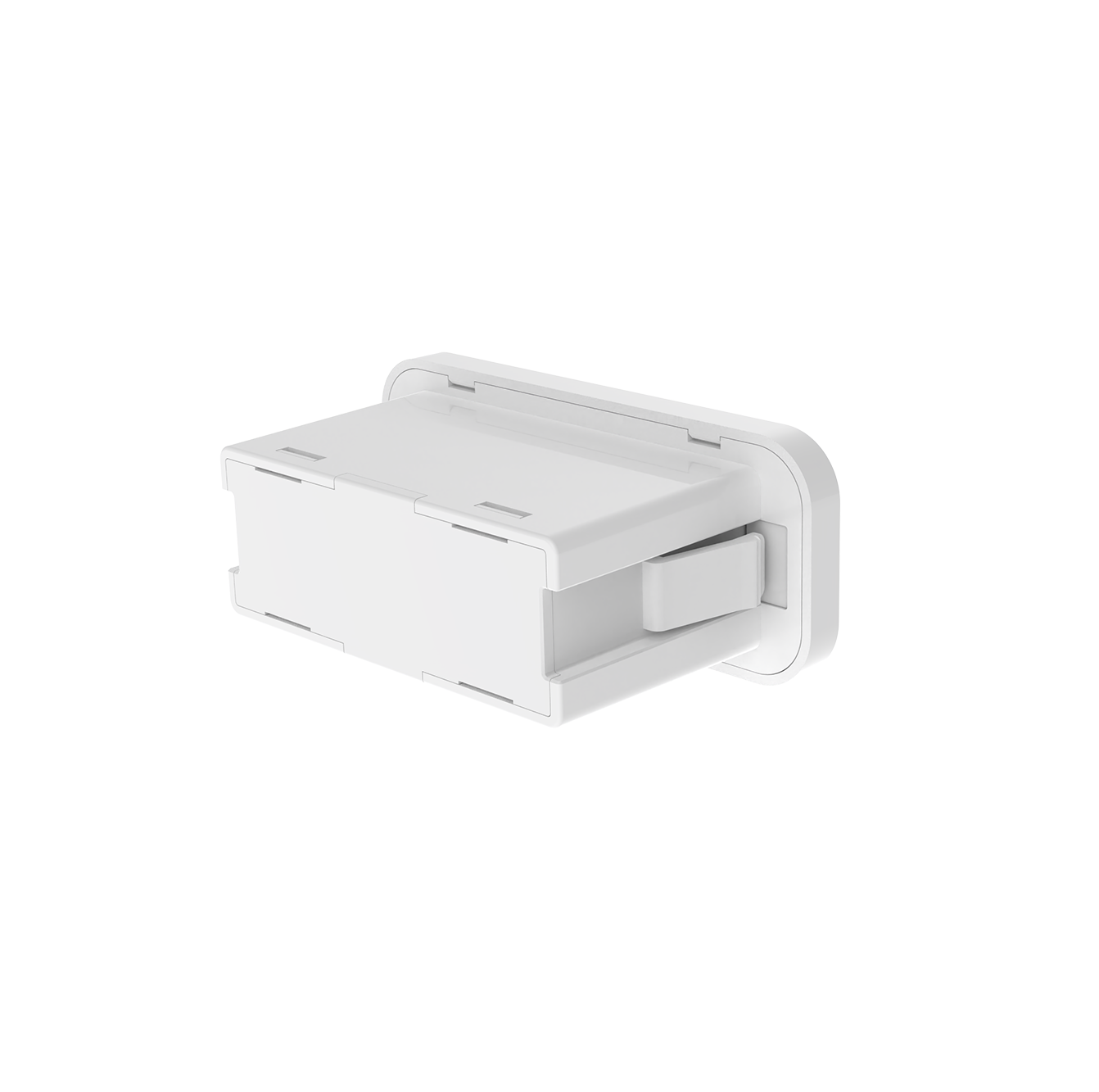

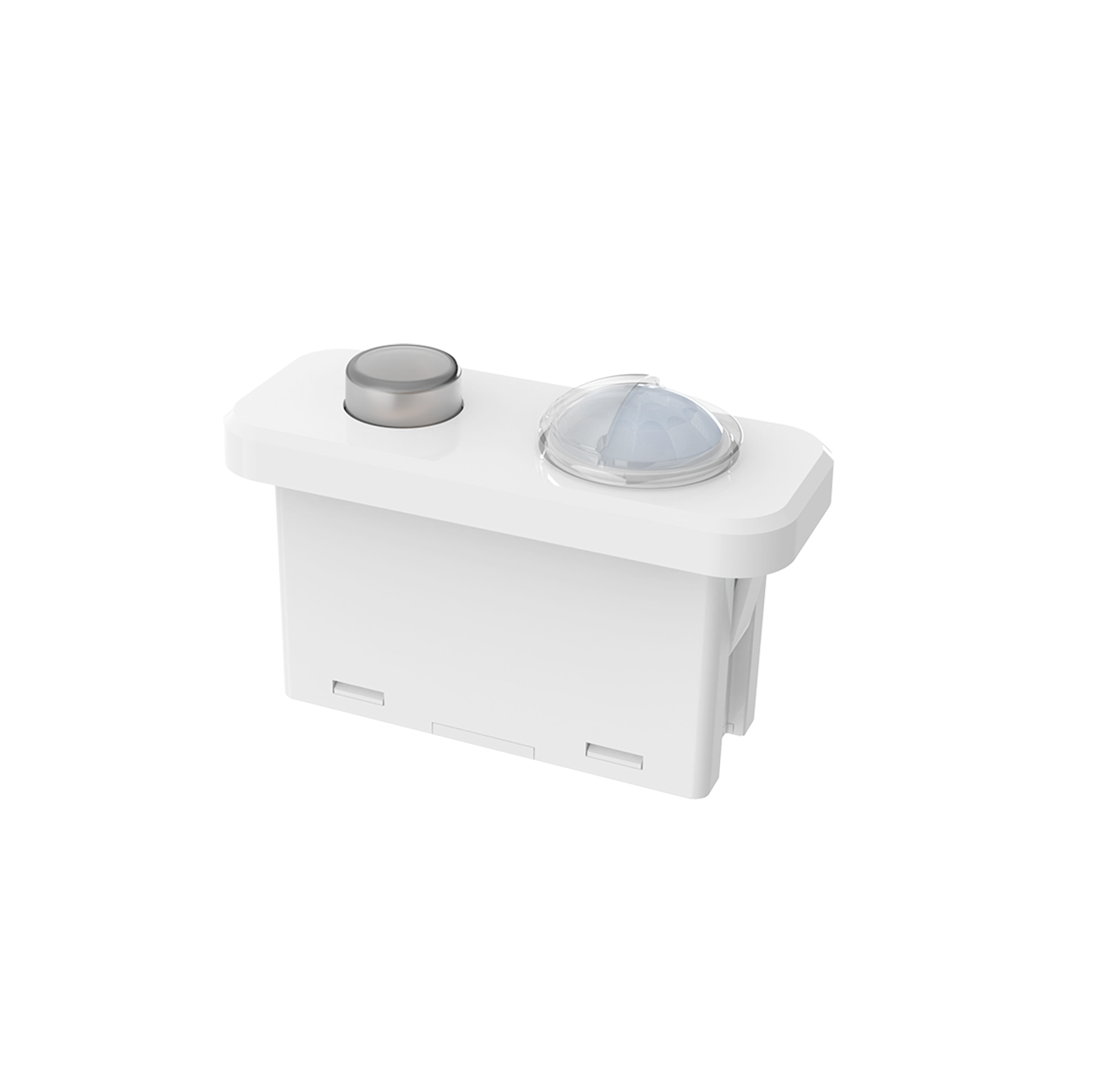

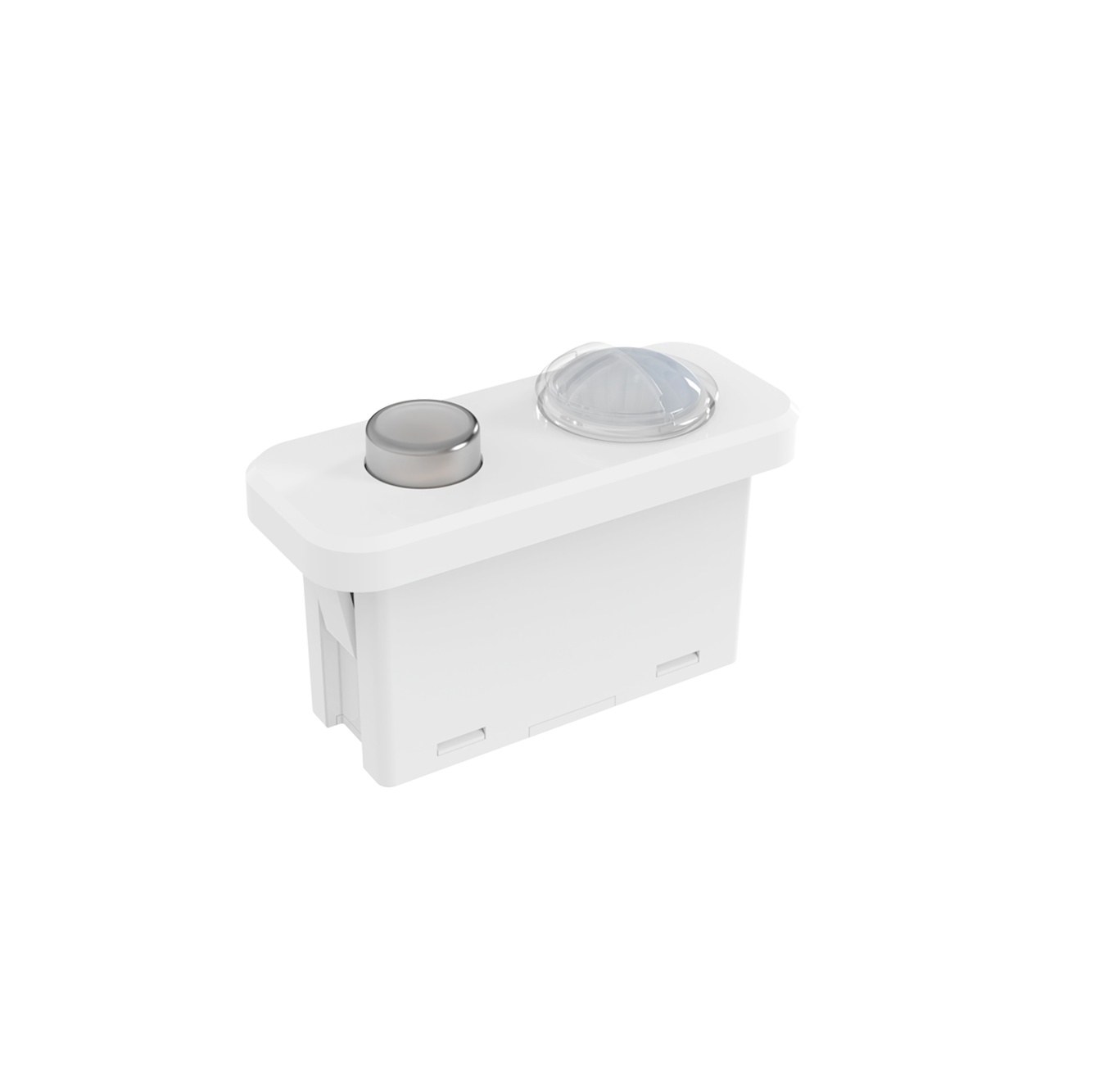

Dali2 & D4i Certified, Dimmable PIR Motion Sensor, Zhaga Book20 Socket, Play & Plug

  • Dali2 & D4i Certified, Dimmable PIR Motion Sensor, Zhaga Book20 Socket, Play & Plug
  • Dali2 & D4i Certified, Dimmable PIR Motion Sensor, Zhaga Book20 Socket, Play & Plug
  • Dali2 & D4i Certified, Dimmable PIR Motion Sensor, Zhaga Book20 Socket, Play & Plug
  • Dali2 & D4i Certified, Dimmable PIR Motion Sensor, Zhaga Book20 Socket, Play & Plug
  • Dali2 & D4i Certified, Dimmable PIR Motion Sensor, Zhaga Book20 Socket, Play & Plug
উৎপত্তি স্থল শেনজেন, চীন
পরিচিতিমুলক নাম Merrytek
সাক্ষ্যদান CE
মডেল নম্বার MDA182D IR
ন্যূনতম চাহিদার পরিমাণ 100
মূল্য আলোচনাযোগ্য
প্যাকেজিং বিবরণ ক্ল্যাপবোর্ড + শক্ত কাগজ(K=A)
ডেলিভারি সময় 1, নমুনা এবং ছোট অর্ডারঃ আপনার পেমেন্ট প্রাপ্তির পরে 5 কার্যদিবসের মধ্যে ((যদি স্টক থাকে) । 2, বাল্ক
পরিশোধের শর্ত টি/টি
যোগানের ক্ষমতা 10000/প্রতি মাসে
পণ্যের বিবরণ
রেটেড ভোল্টেজ 12-24 ভি ডিসি অপারেটিং বর্তমান 12±5mA@16VDC
রিপল ভোল্টেজ <100MVP-P। আউটপুট সংকেত ডালি ডিমিং
সনাক্তকরণ মোড পিআইআর সনাক্তকরণ ইনস্টলেশন উচ্চতা সাধারণত 3 মি (4 মি সর্বোচ্চ)
আইপি রেটিং IP20 আজীবন 5 বছরের ওয়ারেন্টি @ta (ইনডোর)
বিশেষভাবে তুলে ধরা

DALI motion sensor dimmable PIR

,

Zhaga Book20 socket motion detector

,

D4i certified plug play sensor
একটি বার্তা রেখে যান
পণ্যের বর্ণনা
DALI-2 & D4i Certified Dimmable PIR Motion Sensor
Zhaga Book20 socket compatible plug-and-play motion sensor with DALI-2 and D4i certification for seamless integration with D4i drivers.
Product Features
  • DALI-2 & D4i certified for compatibility with D4i drivers
  • Motion sensor instance type 3 (303) and light sensor instance type 4 (304)
  • Indoor maximum mounting height of 4m with PIR motion detection
  • All sensor parameters configurable via DALI central controller
  • Zhaga Book20 socket for plug-and-play installation
Technical Parameters
Input
Rated voltage12-24V DC
Operating current12±5mA @16V DC
Ripple voltage<100mVp-p
Output
Output signalDALI dimming
Sensor Parameters
Detection modePIR detection
Detection areaDALI master setting
Hold timeDALI master setting
Daylight sensorDALI master setting
Daylight priorityDALI master setting
Dimming levelDALI master setting
Detection range (radius)Ceiling installation 3m high: r≥2.5m (100% sensitivity, 60㎡ indoor open space)
Installation heightTypical 3m (4m Max)
DALI Parameters
Motion instance62386-303
Daylight instance62386-304
DALI draw2mA
Environment
Working temperature-20℃ to +55℃
Storage temperature-40℃ to +80℃, Humidity ≤85% (non-condensing)
Certification Standards
CertifiedCE
Environmental requirementsRoHS 2.0, REACH compliant
IP RatingIP20
Other Specifications
Wiring2 pin PH2.0 terminal
Installation requirementsZhaga Book20 installation
Packaging requirementsClapboard + Carton (K=A)
Net weight15.8±3g
Lifetime5 years warranty @Ta (indoor)
Function Description
FunctionConfiguration
ON/OFF functionDALI master setting
2-step dimming functionDALI master setting
3-step dimming functionDALI master setting
Daylight harvestingDALI master setting
Daylight priorityDALI master setting
Network functionDALI master setting
Product Information
Dimensions (Unit: mm)
Product dimension diagram Product dimension detailed view
Cut-hole size
Function
Product function diagram
Wiring
Wiring diagram
Installation Instruction
Installation instruction diagram
Detection Range
Detection range diagram
Initialization
After switching on power, sensor will warm up for 12 seconds then start to work.
Default Settings
Sensitivity: 100%, Hold time: 5s, Daylight sensor: Disable, Stand by period: 0s, Stand by DIM Level: 10%
Application Notice
  • Installation should be performed by professional electrician with power turned off
  • PIR sensor cannot penetrate materials - ensure no obstacles between sensor and moving objects
  • Detection may be difficult when people wear thick clothing in cold weather
  • Heat signals from air conditioners or heating sources may cause false triggering
  • For indoor use only - outdoor sunlight affects detection performance
  • Dimming performance varies with different DALI-2 drivers
  • Daylight threshold measured in sunny environments without shadows
  • Detection distance affected by height, mounting position, and environmental temperature
  • Requires stable DC power supply with input voltage stability and low ripple factor (<100mV)
  • Test with at least 5 units before mass installation in new environments
Note: When ambient temperature approaches human body temperature range (36℃~37℃), PIR motion detection significantly weakens. When ambient or LED tray temperature exceeds 55℃, false triggering may occur - reduce sensitivity or consider alternative sensor placement.
