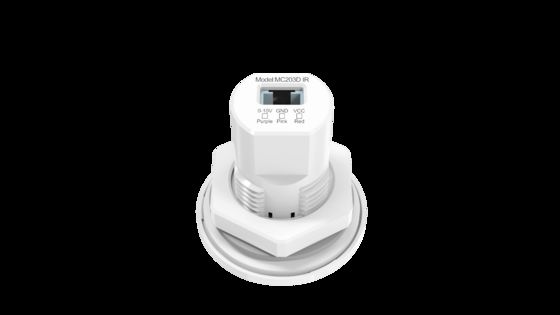

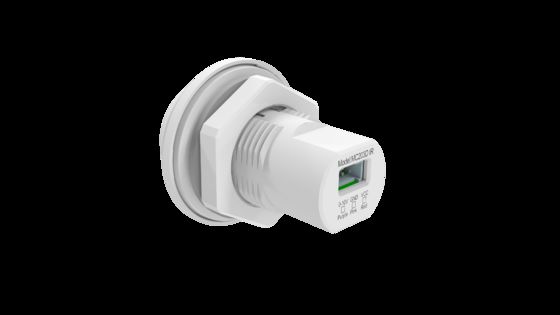

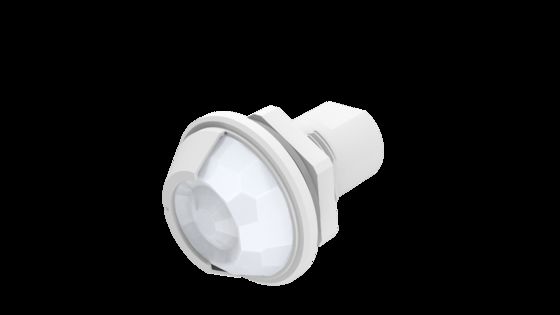

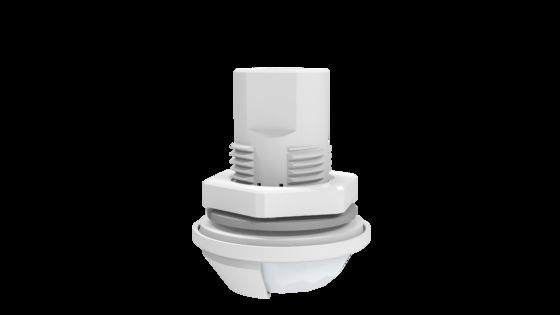

12Vdc Dimmable PIR Motion Sensor For Tri-proof Light, Zhaga Book20 Interface, Parking Garage Applicable

  • 12Vdc Dimmable PIR Motion Sensor For Tri-proof Light, Zhaga Book20 Interface, Parking Garage Applicable
  • 12Vdc Dimmable PIR Motion Sensor For Tri-proof Light, Zhaga Book20 Interface, Parking Garage Applicable
  • 12Vdc Dimmable PIR Motion Sensor For Tri-proof Light, Zhaga Book20 Interface, Parking Garage Applicable
  • 12Vdc Dimmable PIR Motion Sensor For Tri-proof Light, Zhaga Book20 Interface, Parking Garage Applicable
উৎপত্তি স্থল শেনজেন, চীন
পরিচিতিমুলক নাম Merrytek
সাক্ষ্যদান CE
মডেল নম্বার এমসি 203 ডি আইআর 1/ এমসি 203 ডি আইআর
ন্যূনতম চাহিদার পরিমাণ 100 পিসি
মূল্য আলোচনাযোগ্য
প্যাকেজিং বিবরণ ক্ল্যাপবোর্ড + শক্ত কাগজ(K=A)
ডেলিভারি সময় 1, নমুনা এবং ছোট অর্ডার: আপনার অর্থ প্রদানের পরে 5 কার্যদিবসের মধ্যে। 2, বাল্ক অর্ডার: আমানত পাওয়ার
পরিশোধের শর্ত টি/টি
যোগানের ক্ষমতা 10000 পিসি/মাস

বিনামূল্যে নমুনা এবং কুপন পেতে আমার সাথে যোগাযোগ করুন।

হোয়াটসঅ্যাপ:0086 18588475571

ওয়েচ্যাট: 0086 18588475571

স্কাইপ: sales10@aixton.com

আপনার কোন উদ্বেগ থাকলে, আমরা 24-ঘন্টা অনলাইন সহায়তা প্রদান করি।

x
পণ্যের বিবরণ
রেট ভোল্টেজ 12 ± 1VDC বর্তমান কাজ <15mA
আউটপুট সিগন্যাল 5 ভি পিডব্লিউএম ডিমিং/ 0-10v ডিমিং মাউন্টিং উচ্চতা সাধারণ 3 মি (সর্বোচ্চ 4.5 মিটার)
অপারেটিং তাপমাত্রা -20 ℃ -55 ℃ ℃ শংসাপত্র সিই
জীবনকাল 5 বছরের ওয়ারেন্টি @ta (ইনডোর) সনাক্তকরণ মোড পিআইআর সনাক্তকরণ
বিশেষভাবে তুলে ধরা

12Vdc dimmable PIR motion sensor

,

Zhaga Book20 PIR sensor

,

parking garage motion sensor
একটি বার্তা রেখে যান
পণ্যের বর্ণনা
12Vdc Dimmable PIR Motion Sensor For Tri-proof Light, Zhaga Book20 Interface, Parking Garage Applicable
Product Features
  • Zhaga20 interface
  • 4.5meters maximum installation height, suitable for parking garage
  • PIR motion detector for tri-proof light
  • IP65 design
  • Sensor parameters can be adjusted by remote
Technical Parameters
Input
Rated voltage 12±1VDC
Work current <15mA
Ripple voltage <100mVp-p
Output
Output signal MC203D IR 1 | MC203D IR
5V PWM dimming signal 0-10V dimming signal
Sensor Parameters
Detection mode PIR detection
Detection Area 100% /75%/50%/25%
Hold Time 5s/30s/1min/3min/5min/10min/20min/30min
Stand-by Period 0s/10s/1min/3min/5min/10min/30min/+∞
Daylight Sensor
Daylight threshold: 5Lux/15Lux/30Lux/50Lux/100Lux/150Lux/999Lux(Disable) (Ambient diffusion status)
Daylight Priority: ON | OFF
5Lux: 55-105Lux
15Lux: 65-115Lux
30Lux: 80-130Lux
50Lux: 100-150Lux
100Lux: 150-250Lux
150Lux: 200-300Lux
Dimming level 10%(1.4-1.6V) 20%(1.9-2.1V) 30%(2.9-3.1V) 50% (4.9-5.1V)
Detection range (radius) 2-4m (indoor, sensitivity 100%,no direct sunlight to sensor; temperature25℃)
Installation height Typical 3m (4.5m Max)
Environment
Working temperature(Ta) -20℃-55℃
Storage temperature -40℃~+80℃ Humidity: ≤85% (non-condensing)
Certification Standards
Certified CE
Environmental requirements Comply with RoHS 2.0, Reach requirements
IP Rating IP65
Other Specifications
Wiring Wire 3 PIN 378±8mm
Installation requirements Mount center or side of highbay
Packaging requirements Clapboard + Carton(K=A)
Net weight 10±3g
Lifetime 5 years warranty @Ta (indoor)

When ambient temperature approaches the human body temperature range (36℃~37℃/96.8~98.6℉), PIR motion detection will significantly weaken or non-responsive.

When ambient temperature or LED tray temperature is higher than 55℃/131℉, false triggering may happen, please try to reduce detecting sensitivity to improve. If stays false triggering, the PIR sensor should not suitable to be used in the space.

Function Description
ON-OFF function Stand-by Period be set to "0s"
2-step dimming Stand-by Period be set to "+∞"
3-step dimming Stand-by Period be set to "10s/1min/3min/5min/10min/30min"
Daylight priority Remote press DH Mode and Daylight Sensor be set to "5Lux/15Lux/30Lux/50Lux/100Lux/150Lux"
Daylight harvesting N/A
Product Information
  • Dimension (Unit:mm)
12Vdc Dimmable PIR Motion Sensor For Tri-proof Light, Zhaga Book20 Interface, Parking Garage Applicable 0
  • Wiring
12Vdc Dimmable PIR Motion Sensor For Tri-proof Light, Zhaga Book20 Interface, Parking Garage Applicable 1
Detection Range
12Vdc Dimmable PIR Motion Sensor For Tri-proof Light, Zhaga Book20 Interface, Parking Garage Applicable 2
Remote Control
12Vdc Dimmable PIR Motion Sensor For Tri-proof Light, Zhaga Book20 Interface, Parking Garage Applicable 3
Initialization

After switch on power, sensor will be warmed 45-60s then start to work.

Default Setting

Sensitivity: 100%, Hold time: 5s, Daylight sensor: Disable, Stand by period: 0s, Stand by DIM Level: 10%

Application Notice
  • The sensor should be installed by a professional electrician. Please turn off the power before installing, wiring and changing parameters.
  • PIR sensor can't penetrate any materials, please make sure no obstacle between sensor and moving people/object.
  • Sensor may hard to detect people if wear thick clothes in cold winter.
  • Heat signals will be regarded as moving signals to trigger the sensor. Avoid facing sensor to air condition or other heating source.
  • Sensor is for indoor use only. Outdoor sunlight could affect the detection of sensor.
  • Due to continuous improvement, the contents of this instruction could be changed without prior notice.
  • The dimming performance could be different when work with different 0-10V drivers.
  • The daylight threshold is measured in a sunny environment without shadow and ambient light diffuse reflection. Ambient lux level could be different in different environment, weather, climate, time-of-day and season.
  • Detection distance is related to height of people, mounting height, mounting angle, working environment temperature and etc.

This product have to use with voltage-stabilized DC power supply whose input voltage is stable and ripple factor is low(ripple factor is lower than 100mV; load current is greater than 25mA).

When installing in new environment, please install and test at least 5pcs product firstly before mass installation.

PIR Sensor Important Notes

PIR is a pyroelectric infrared sensor that detects changes in infrared rays. Please pay attention to the following matters during actual use:

  • Detecting heat sources other than the human body
  • The temperature of the heat source does not change or the heat source does not move
  • Other related environmental factors and violations of the PIR application principle impact
Possible False Triggering Scenarios
  1. When small animals enter the detection range
  2. When far-infrared rays from sunlight, car headlights, incandescent lamps, etc. are directly exposed to the sensor
  3. When the temperature in the detection range changes drastically due to warm air, cold air from cold greenhouse equipment, water vapor from humidifiers, etc.
Possible Non-Triggering Scenarios
  1. When there are substances such as glass and acrylic that block the transmission of far-infrared rays between the sensor and the detection object.
  2. The heat source within the detection range hardly moves or moves at high speed.
